GLOVIEW CO., LTD.
Cores and shielding for the vehicles and test facilities of the next decade.
Soft magnetic cores, RF/EMI shielding parts and passive components for EV power electronics and EMC chambers, supplied from one source.
Our Gallery
Products for power electronics and EMC.

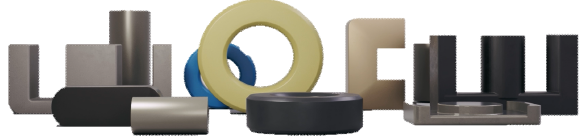

Soft Magnetic Core
Nanocrystalline, amorphous, ferrite and magnetic powder cores for EV, chargers, ICCU and current sensors.
VIEW PRODUCTS →
RF / EMI Shielding
Ferrite and pyramid absorbers, EMC/EMP filters and shielding doors for EMC test facilities.
VIEW PRODUCTS →
Passive Components
Ceramic capacitors and film capacitors for power and control circuits.
VIEW PRODUCTS →From automotive to defense
Registered with the customers that set the specification.
GLOVIEW is a registered development partner of Hyundai Motor Namyang R&D and the official Korean agent of Guangzhou Nano-metal. We supply cores to Korean automotive Tier 1–2 manufacturers and shielding parts to EMC and defense facilities in Korea and overseas.

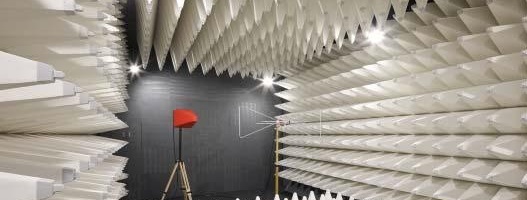

EMC chamber
Inside an EMC shielded room.
Ferrite absorbers handle the low band on the walls. Pyramid absorbers are added in a hybrid configuration above 1 GHz. Shielded rooms and doors are designed and quoted after the site specification is confirmed.
Absorber coverage by frequency
Ferrite absorber and pyramid absorber in hybrid configuration.
One supply partner
Diverse products, one point of contact.
Contact Info
Get in touch.
150 Dongtanyeongcheon-ro, Dongtan-gu, Hwaseong-si, Gyeonggi-do, Korea

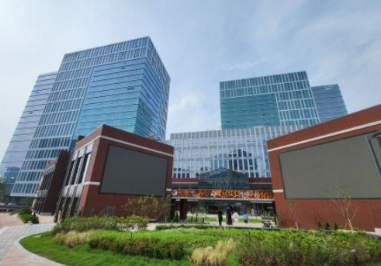

Hyundai Silicon Alley Dongtan, Bldg C, Unit 1201
jhlee@gloview.kr
Tel / Fax +82 31 375 6093
Mobile +82 10 2418 6093
- Company
- GLOVIEW CO., LTD.
- Established
- April 2024 (predecessor Cowin Global, 2020)
- CEO
- Junho Lee
- Address
- 150 Dongtanyeongcheon-ro, Dongtan-gu, Hwaseong-si, Gyeonggi-do, Korea
Hyundai Silicon Alley Dongtan, Bldg C, Unit 1201 - Business
- Soft magnetic cores · RF/EMI shielding parts · Passive components
- Industries
- EV · Power electronics · Industrial · Home appliances · Defense
What we do
Since 2020, first as Cowin Global and from April 2024 as GLOVIEW, we have imported and exported key components for a wide range of industries and supplied them to customers in Korea and overseas.
Through business agreements with manufacturers around the world, we deliver soft magnetic cores, RF/EMI shielding parts and passive components to the right place in the fastest and most efficient way. We aim to be a company that customers trust and grow with.
Soft Magnetic Core
EV · Chargers · ICCU · Current sensors · Home appliancesRF / EMI Shielding
EMC test facilities · Shielded roomsPassive Components
Power and control circuits · EV applicationsTypical use: EV · Chargers · ICCU · Current sensors · Home appliances
- Group
- Soft Magnetic Core
- Product

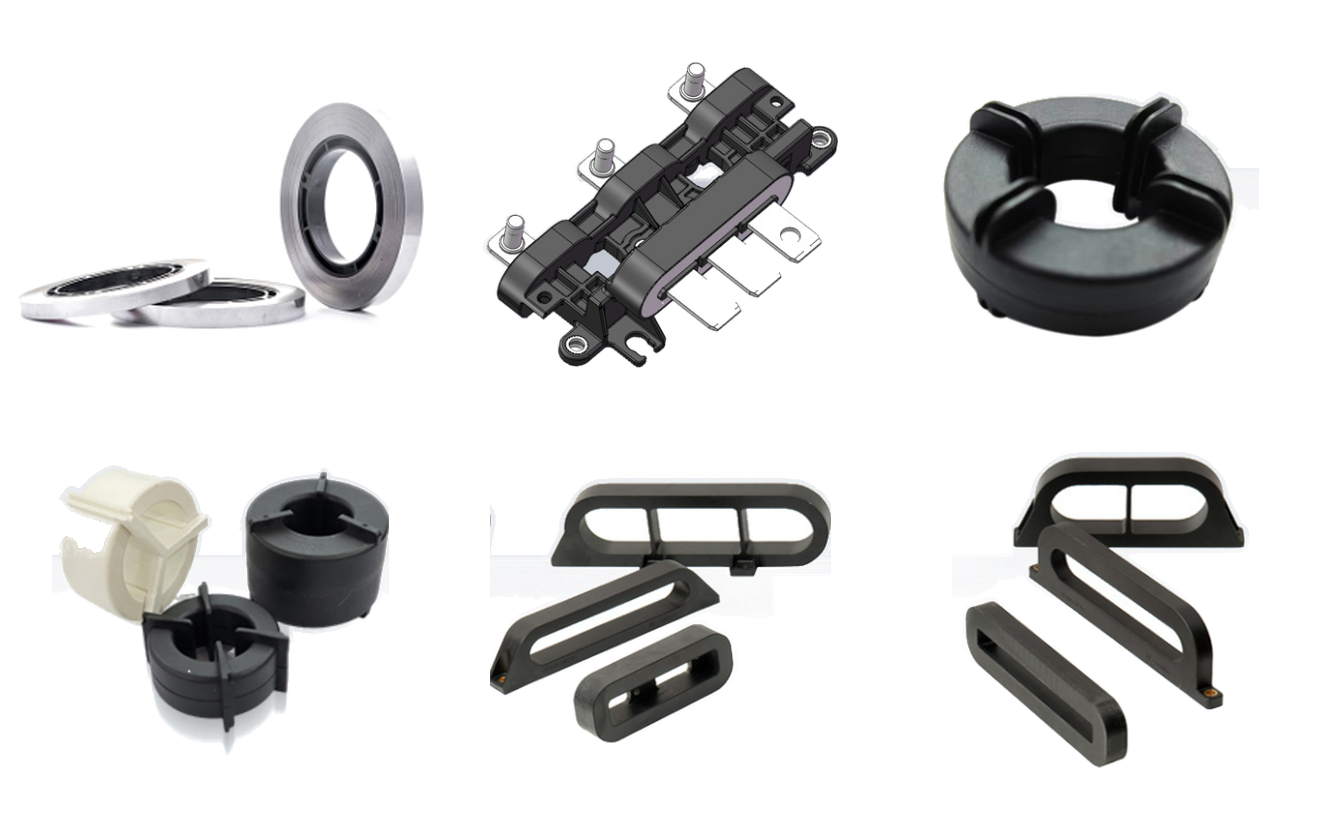

- Nanocrystalline Core, Amorphous Core
- Typical use
- EV · Chargers · ICCU · Current sensors · Home appliances
Other products in this group
- Group
- Soft Magnetic Core
- Product

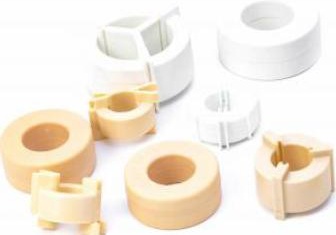

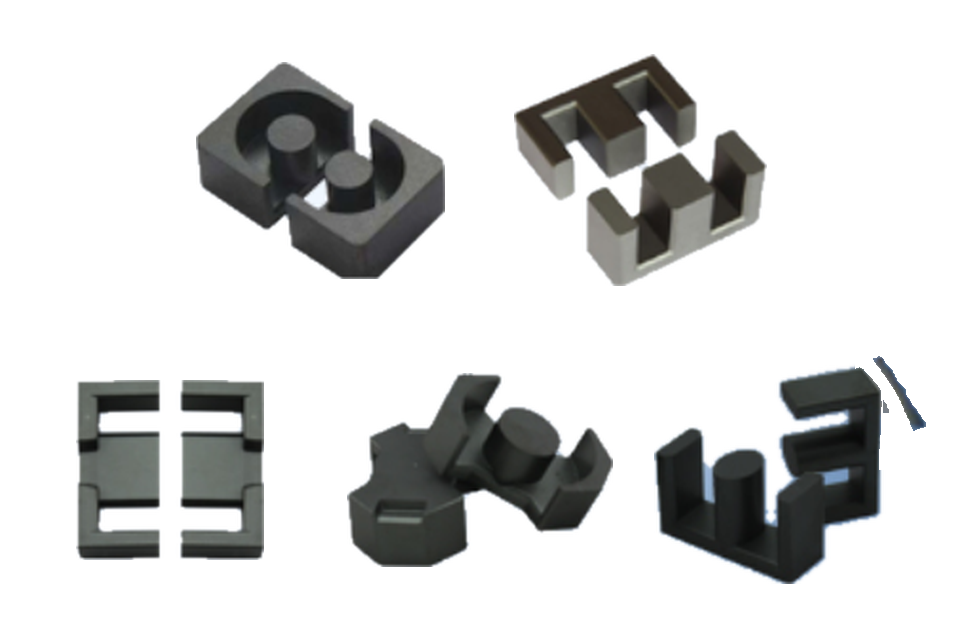

- Ferrite Core
- Typical use
- EV · Chargers · ICCU · Current sensors · Home appliances
Other products in this group
- Group
- Soft Magnetic Core
- Product

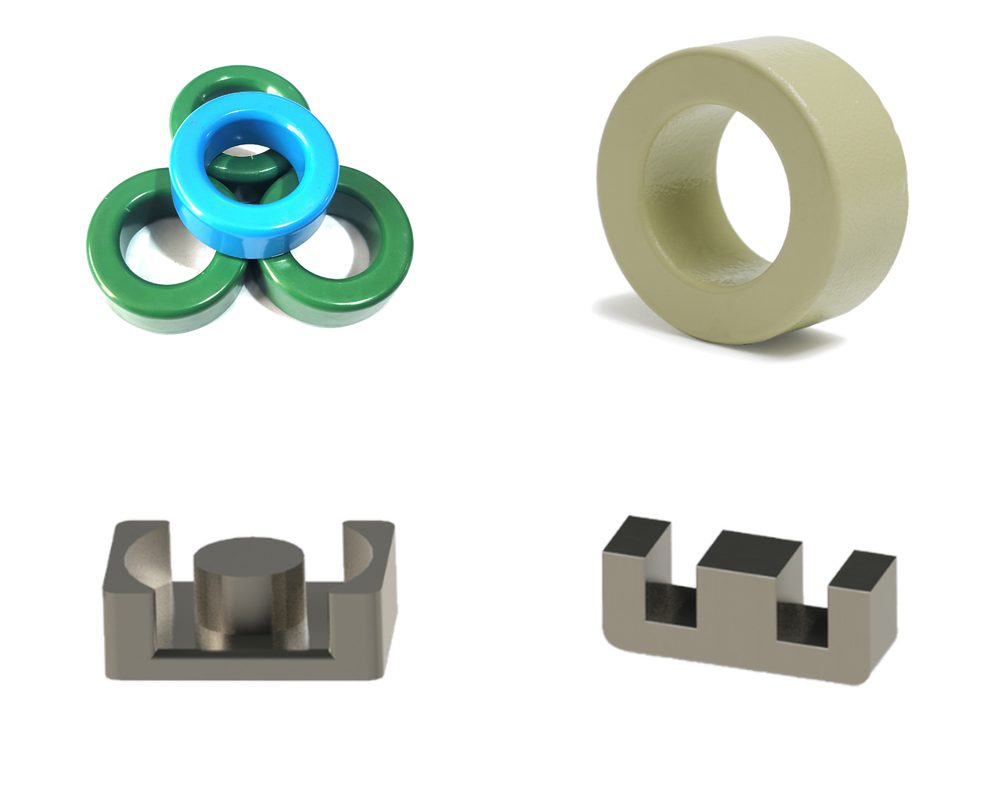

- Magnetic Powder Core
- Typical use
- EV · Chargers · ICCU · Current sensors · Home appliances
Other products in this group
Ferrite RF Absorber
Shielded room walls · 30 MHz–1 GHz
VIEW →Pyramid Absorber
Hybrid configuration · above 1 GHz
VIEW →
EMC/EMP Shielding Door
Sliding and hinged types
VIEW →

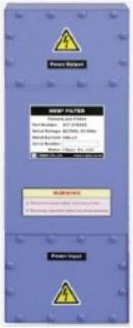

EMC/EMP Filter
Feed-through for power and signal lines
VIEW →Typical use: EMC test facilities · Shielded rooms
Absorber coverage by frequency
Ferrite absorbers cover the lower band; pyramid absorbers are added in a hybrid configuration above 1 GHz.
Manufacturer: HCA Corporation

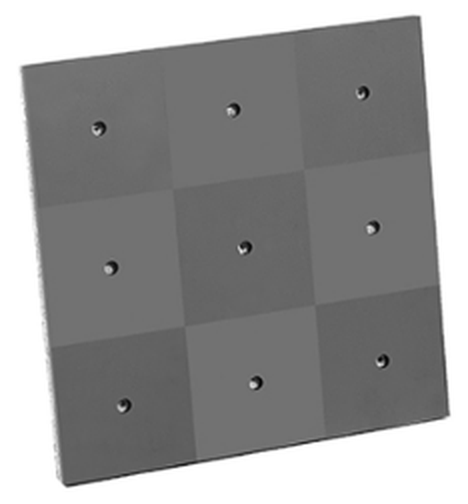

The HFT Series is HCA's flagship RF absorber, built for the 30 MHz to 1 GHz range. It is used on its own or combined with hybrid pyramidal absorbers, in new anechoic chambers and in upgrades of existing EMC facilities. Each tile is precision machined and surface ground on all six sides to reduce gaps between adjacent tiles.
Specifications
| Frequency range | 30 MHz to 1 GHz (VHF and UHF bands) |
|---|---|
| Material | Fire-resistant sintered ferrite |
| Machining | Surface ground on all 6 sides |
| Mounting hole | 10 mm |
| Available panel size | 600 × 600 mm |
| Compliance | REACH and RoHS |
| Warranty | 35 years (stated by HCA) |
Features
- Good impedance match for use with hybrid absorbers
- Precision machined to strict mechanical tolerances
- Nonflammable sintered ferrite
- Screwed to the wall through the 10 mm hole, or attached with adhesive
- Ultra-thin, so it takes little space inside a shielded enclosure
Applications
- EMC anechoic chambers: radiated emission and immunity testing, new builds and upgrades
- Dark boxes for mobile phone inspection
- TV ghost prevention: UHF reflection attenuation in high-rise buildings
- RFID interference prevention for UHF readers in industrial settings
- Automotive and IoT testing, including self-driving car sensors and drones
- Plane-wave reflection attenuation in existing RF shielded rooms
Thickness and reflectivity values are not published on the product page. Contact us for the datasheet.
Other products in this group

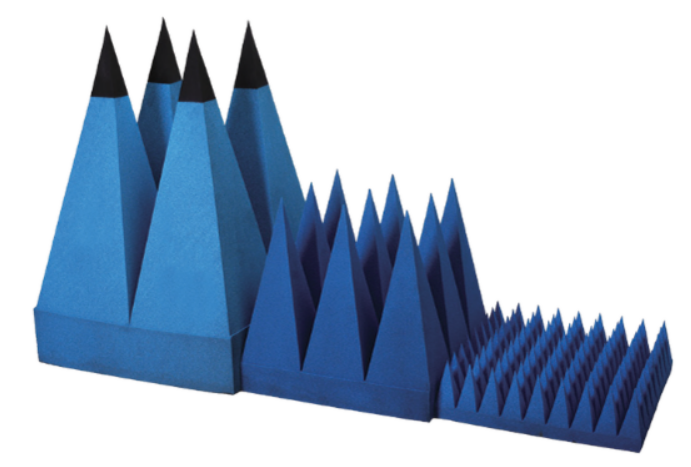

Manufacturer: HCA Corporation

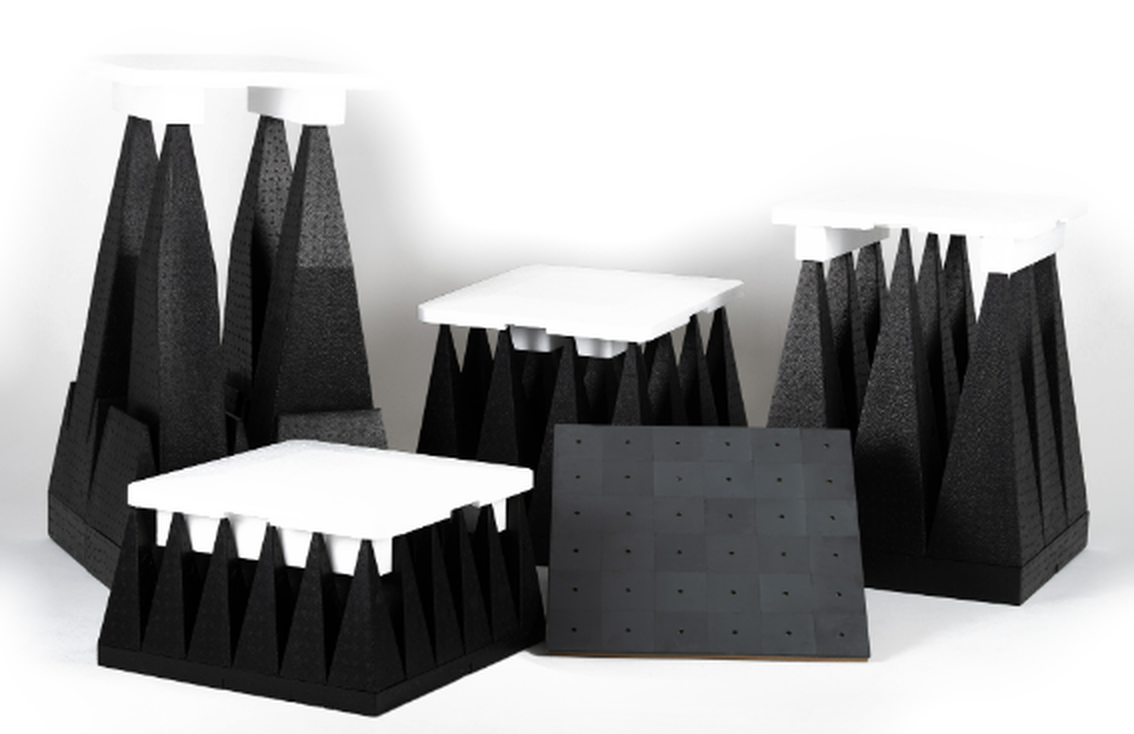

HCA makes pyramidal absorbers for EMC chambers and develops its own ferrite tiles to work with them. Together they form what HCA calls a harmonized EMC solution. EMC testing identifies and reduces unintended electromagnetic emissions so that devices meet regulatory standards.
Standards and application areas
| Standard | Application area | Notes |
|---|---|---|
| CISPR 16-1-4 | (FS)NSA / sVSWR | Pre-compliance testing up to 10 m, in semi-anechoic chambers and fully anechoic rooms |
| IEC 61000-4-3 | Field uniformity | Uniform field distribution |
| CISPR 25 / ISO 11452 | Automotive component | Component testing chambers |
| CISPR 12/25 / ISO 11451 | Full vehicle | Full vehicle chambers |
Frequency range, dimensions and reflectivity values are not published on the product page. Contact us for the datasheet and brochure.
Other products in this group
- Group
- RF / EMI Shielding
- Product

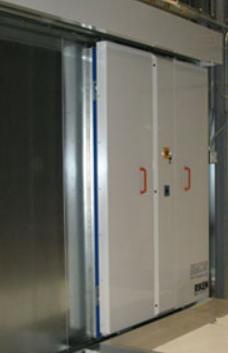

- EMC/EMP Shielding Door
- Typical use
- EMC test facilities · Shielded rooms
- Manufacturer
- Daehan Shield Engineering Co., Ltd. (대한실드엔지니어링㈜)
Other products in this group
- Group
- RF / EMI Shielding
- Product
- EMC/EMP Filter
- Typical use
- EMC test facilities · Shielded rooms
Other products in this group
Typical use: Power and control circuits · EV applications
- Group
- Passive Components
- Product

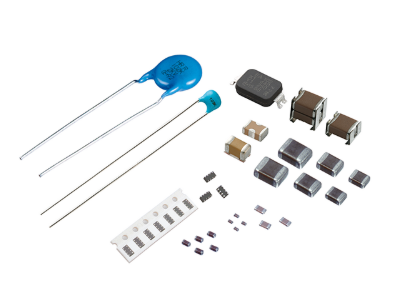

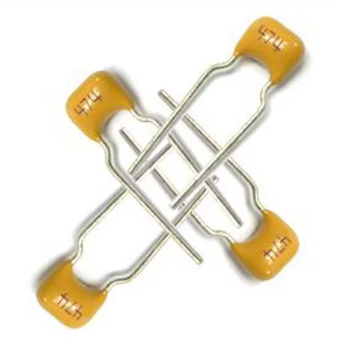

- Ceramic Capacitor
- Typical use
- Power and control circuits · EV applications
Other products in this group
- Group
- Passive Components
- Product

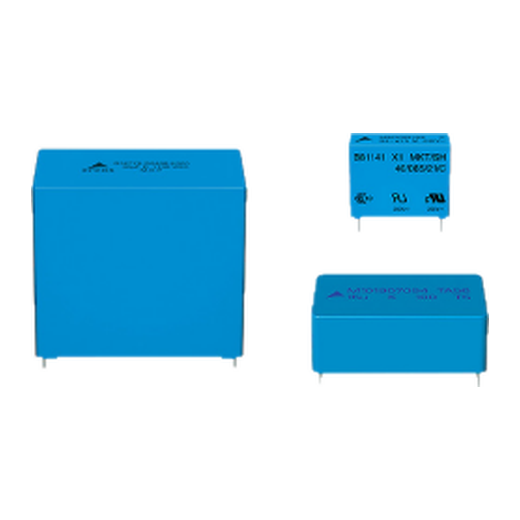

- Film Capacitor
- Typical use
- Power and control circuits · EV applications
Other products in this group
